Convert Thermocouple EMF to Temperature (Windows)

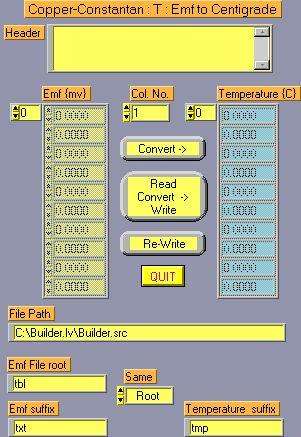

Front Panel

Emf 2 Temp Cu-Co:

Reads the requested file, translates the specified column from Emf (voltage) {mv} to Temperature {C}. If the file has a text header, this is copied across, and the new file written. The header may also be edited. Can also be used to just: type in the Emf, read the temperature,

Only for Type T (Copper-Constantan) thermocouples at the moment, for which it covers -270C to +400C.

2mK RMS error w.r.t. NIST calibration ITS90 (quoted accuracy 50mk); 0.4mK peak error @ 12 thermoelectric fixed points.
- However it is your responlibility to ensure that all software meets the requirements of your application.

See the menu items

Windows -> Show Vi Info
Help -> Show Help
Help -> About

for more details, or see the NIST webpage http://www.nist.gov/srd
NIST : (USA) National Institute of Standards and Technology.

This Windows program is free, but donations are appreciated, especially if you are using it for work or to make money. I intend to do more in this series, but if I have no return from this offering, I can not make them all freely available.
C 1990, 1993, 1995, 1997, 1999 J.B.W.Webber@ukc.ac.uk Mainly developed at home using Apl68000, this binary using LabView.

Download:

emf2tempcuco.zip
you should get directory emf2tempcuco.disks

Install:

double click on the install.exe n above directory
You should find a Lab Tools entry under Start -> Programs -> Lab Tools

UnInstall (95/98):

go to Start -> Settings -> Control Panel -> Add/Remove Programs,

Please contact me if you are interested in either a fully configured and working instrument, or just the LabView Vis (programs) to implement such an instrument. I can also undertake to produce custom versions for your particular application.
